Shanghai Xieguang Spectrum Co., Ltd.

Lamp features:
1 die cast aluminum electrical box, surface electrostatic spray, corrosion resistant, durable.
2 high purity tensile aluminum cover, surface polishing anodic oxidation treatment, mirror effect is good.
3 transparent cover optional, optional PC cover or tempered glass.
4 according to the installation requirements, choose a hook or rod installation way.
5 equipped with our 80W~200 ring of the endless light, long life, good color,
Light output soft stable, efficient and energy saving maintenance free.
Application place:
Applicable to all kinds of industrial and mining enterprises, warehouses, stadiums, exhibition halls, auto show,
Large supermarkets and other indoor lighting

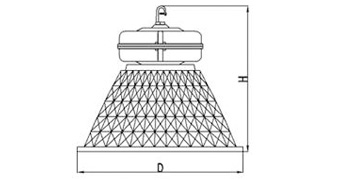

Lamp size:

Product model	D (mm)	H（mm)
XG-104A	420	480
XG-104B	540	480

Technical parameter：

Product mode l	power (W)	Input voltage	Working temperatur（℃）	Color temperature（CT)	Installation	Packing size（mm)	Net weight（kg)	Protectiongrade	Remarks
XG-104A	80W	90-300	- 25 ~ +70	2700/6500K	Hook / rod	470470520	6.1	IP54	PC/ glass
XG-104B	120W	90-300	- 25 ~ +70	2700/6500K	Hook / rod	590590520	7.5	IP54	PC/ glass
XG-104B	150W	90-300	- 25 ~ +70	2700/6500K	Hook / rod	590590520	7.6	IP54	PC/ glass
XG-104B	200W	90-300	- 25 ~ +70	2700/6500K	Hook / rod	590590520	7.9	IP54	PC/ glass
