Light features:
1 lamps for high pressure casting aluminum alloy, surface electrostatic spray, anti-corrosion and durable
2 imported high quality aluminum reflector, high quality reflection effect, toughened glass cover
The 3 light source and electrical isolation box installation, prolong the life of the light source and electrical appliances
Our 80w~300W 4 is equipped with a rectangular electrodeless lamp, long life,
Good color, soft and light output stability, high efficiency and energy saving maintenance free.
Application places:
Applicable to all types of street lighting and street lighting

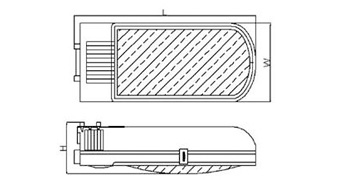

Lamp size:

Product model	L(mm）	W (mm)	H（mm)
XG-808A	700	380	220
XG-808B	870	3380	220

Technical parameter：

Product model	power(W)	Input voltage	Working temperature（℃）	Color temperature（CT）	Installation	Packing size（mm）	Net weight（kg）	Protection grade	Remarks
XG-808A	80W	90-300	- 25 ~ +70	2700/6500K	Post installation¢70	770430310	8.7	IP65
XG-808A	120W	90-300	- 25 ~ +70	2700/6500K	Post installation¢70	770430310	9.1	IP65
XG-808A	150W	90-300	- 25 ~ +70	2700/6500K	Post installation¢70	770430310	9.3	IP65
XG-808B	200W	90-300	- 25 ~ +70	2700/6500K	Post installation¢70	960430300	12.9	IP65
XG-808B	300W	90-300	- 25 ~ +70	2700/6500K	Post installation¢70	960430300	13.9	IP65
